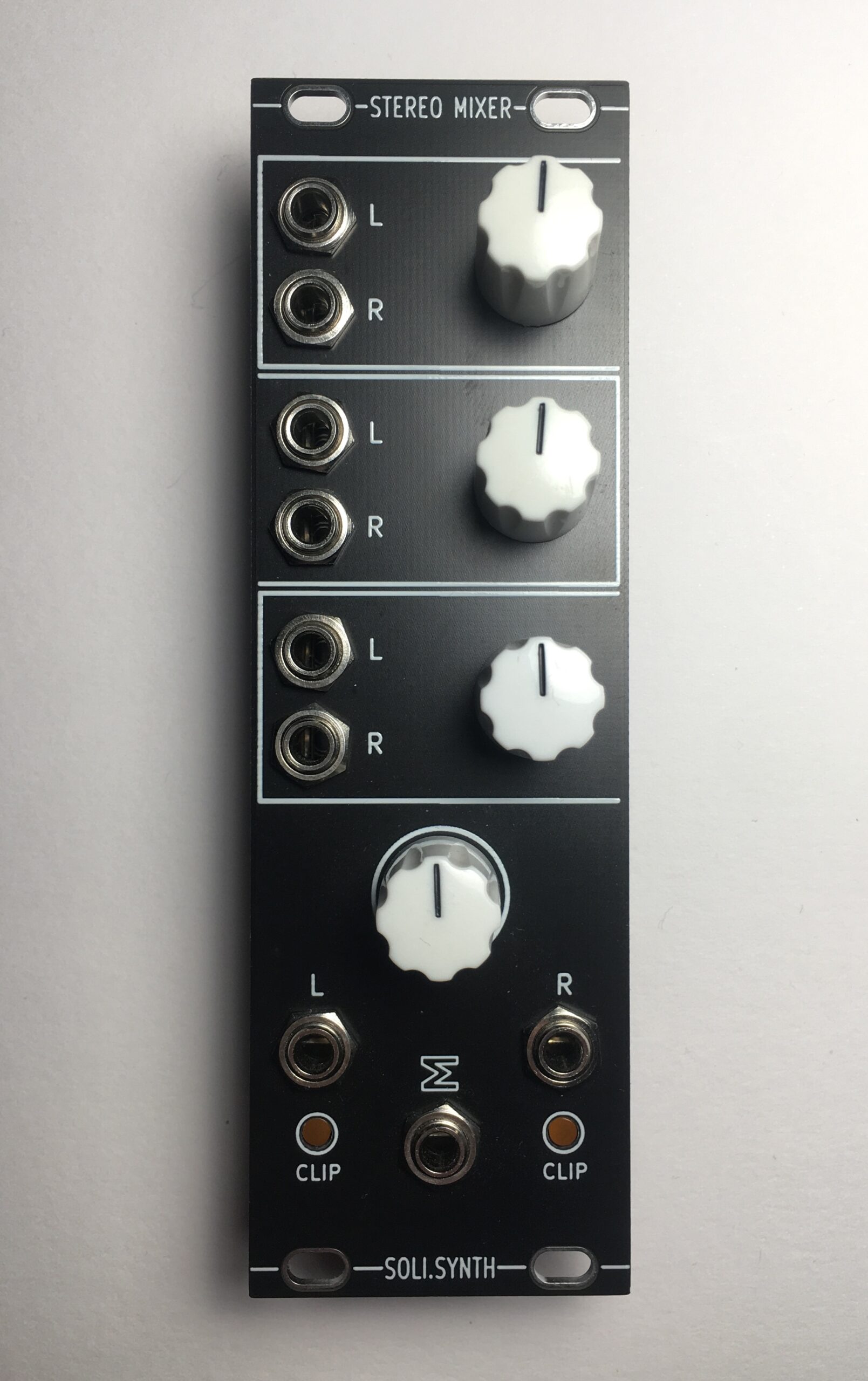

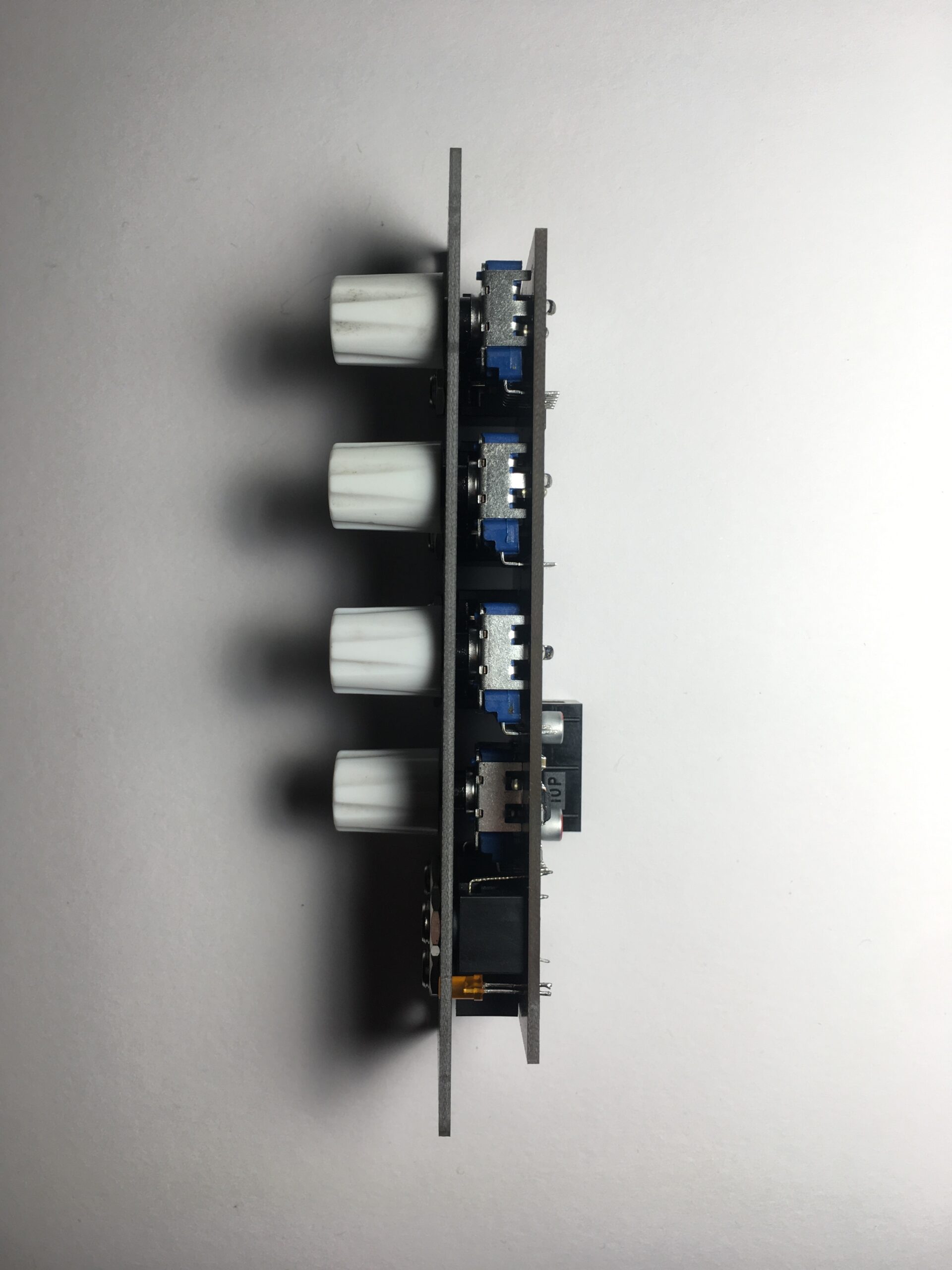

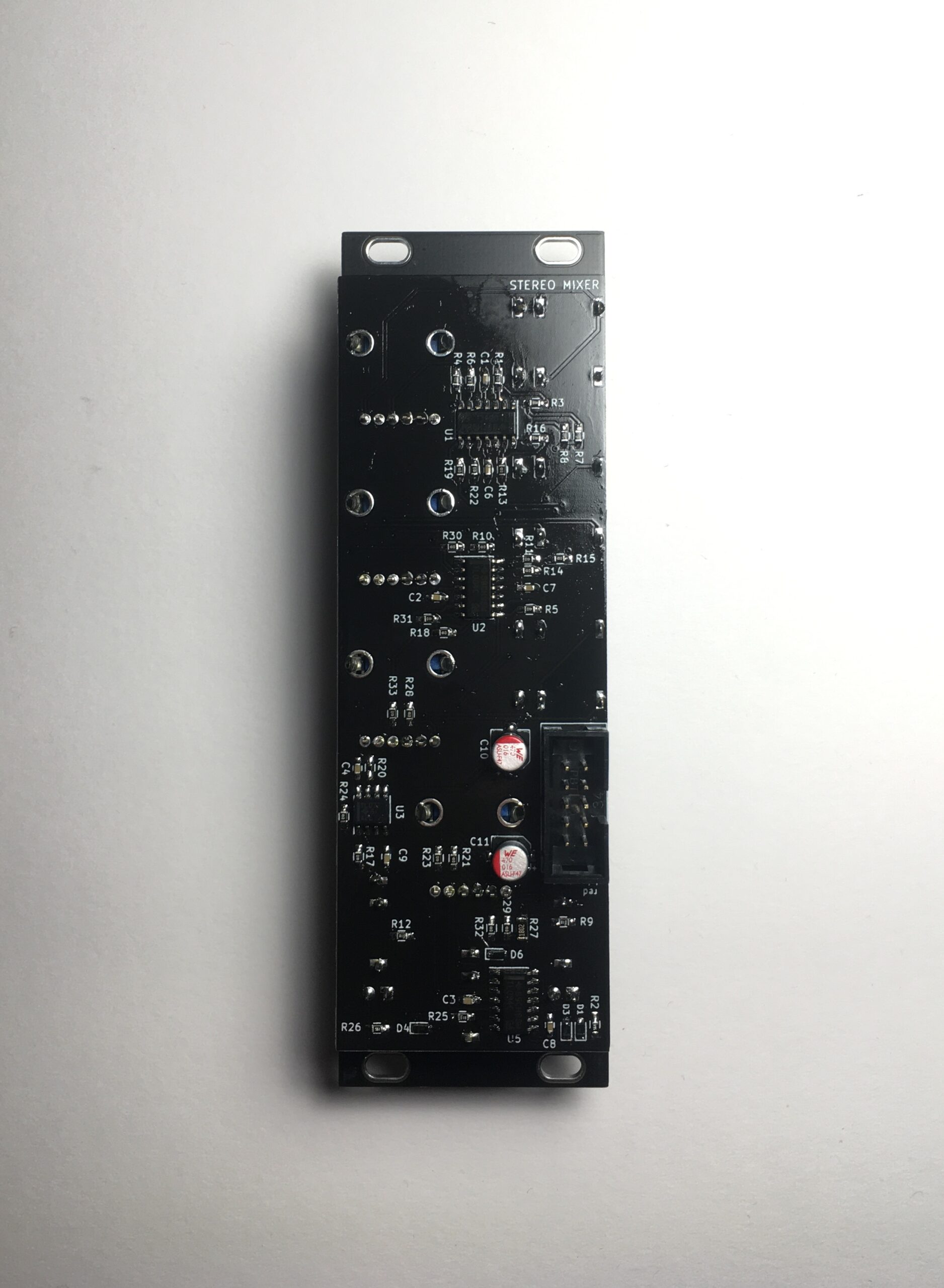

The ‘Stereo Mixer’ is a 3 Channel Stereo Mixer with additional mono sum output and clipping indication LEDs.
The left signal is forwarded to the right channel If nothing is plugged in the right channels input. This enables easy mixing of stereo and mono input signals.
Both inputs are DC coupled, therefore the module can be used for mixing control voltages as well as audio signals!

Width: 8HP
Power Consumtion: 3 mA @ 12V | 3mA @-12V
Link to files:
Difficulty to build: MEDIUM
